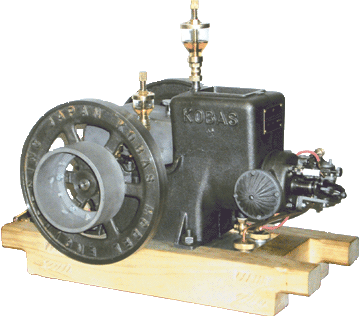

Miniature Version "Kobas new Model"outline of specifications

Miniature Version outline of specifications for finished Goods

Product configuration

Finished
dimensions

Weight

Standard
equipment

Engine
displacement

Optional parts


Selectable sources of power

Applicable age for operation

Main material


Manufactured in

Precautions for operation




Note

Unit with mounting base, oiler, A4-size manual

410(W) × 273(D) × 243(H) mm
(base included)

Approx. 17 kg

Fuel tank (Max. 580 cc), wheel handle


Approx. 90 cc (Gasoline engine)


Electric motor (Separately sold. V-belt is used. 60 W)

Gasoline engine/Electric motor/Manual operation (with wheel handle)

18 years or over


Standard casting (partially ductile iron), Japanese cypress, etc.

Japan

Beware of fire and ventilate properly when operating the machine with gasoline (Separately sold. Available at a gas station). There will be inevitable driving noises, vibrations, emissions, and so on.

This product is a miniature model. Please be forewarned that the product is not designed and fabricated for use as practical equipment for reason of cost economy, therefore, refrain from using the product beyond level of exhibition, test run and demonstration purposes.



Miniature Vrsion do-it-yourself KIT outline of specifications
Article
constitution







Assembling time

An assembling degree of difficulty
(hexagon wrench 2.5 millimeters .4 millimeters, spanner 5.5 millimeters .7 millimeters 8 millimeters .12 millimeters, radio pliers, driver small plus or minus) with an assembling kit (a casting part finished with manufacturing, an oiler fuel tank, a box type magnet, pedestal others), exclusive small size tool nine points / a case, an A4 size manual

About 30 hours


An article for intermediate - seniors

※ I am equal to or less than finish size and am the same as a miniature edition finished product summary.
